How to Create Access Policy in Triofox

Triofox has the ability to govern the level of access a user will have when connecting to the web portal or launching the windows client when logging in from specific locations. We can deny or allow access from the internet, a local network or a customer defined IP range

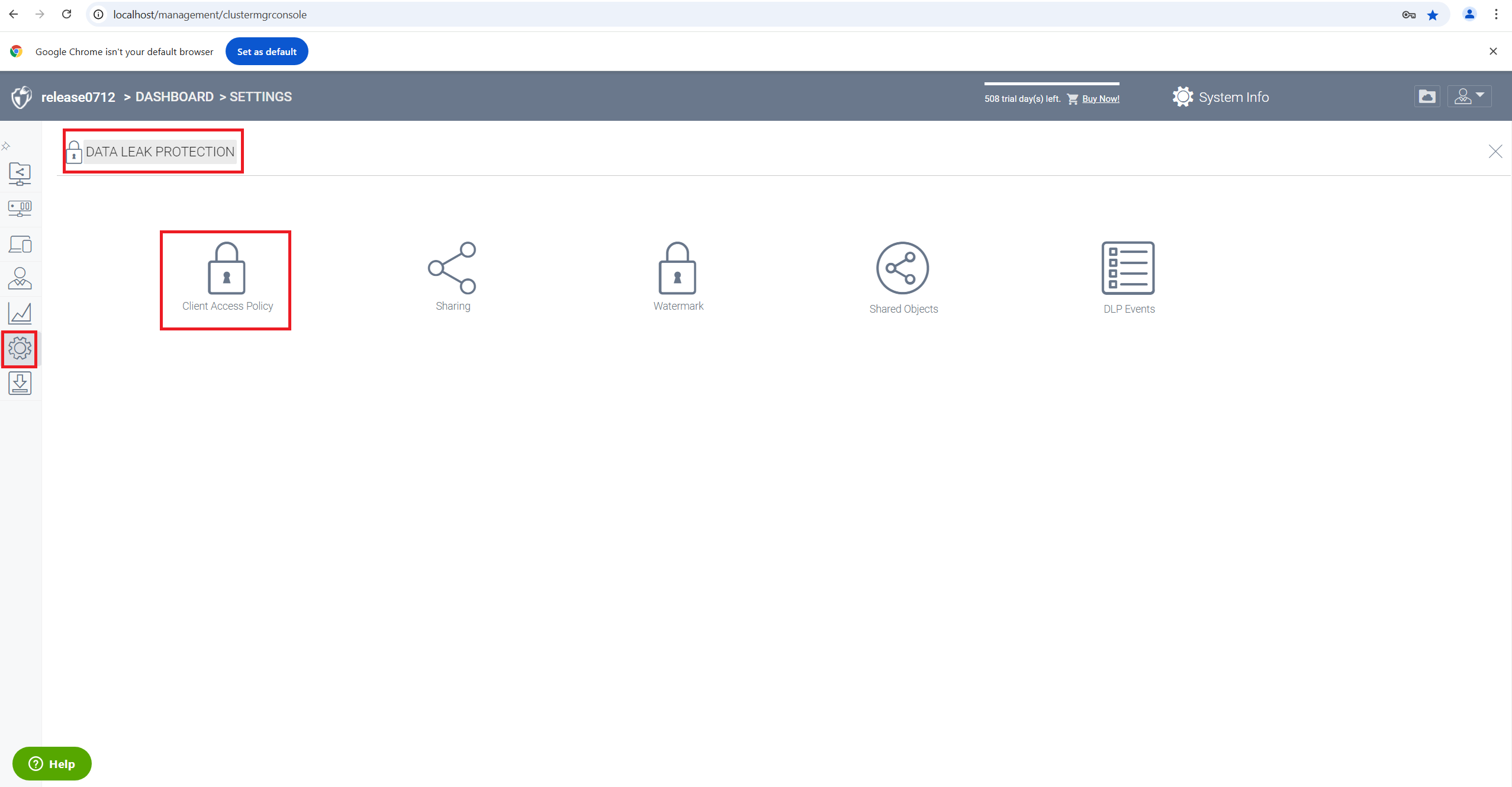

To do this, log into the web portal as the admin user and go thorugh Settings -> Data Leak Protection -> Client Access Policy.

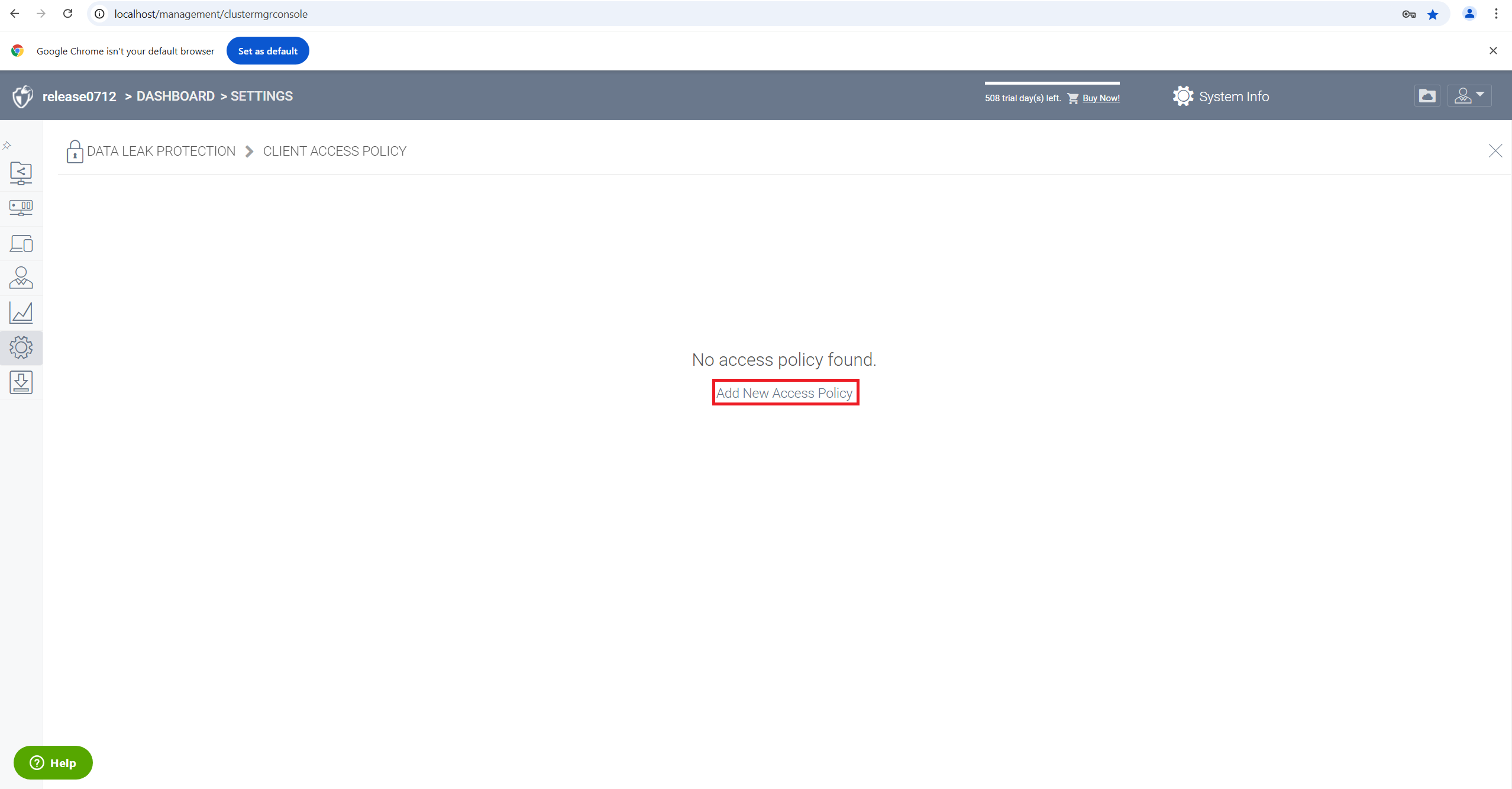

You will be presented with the Access Policy Wizard. Click Add New Access Policy

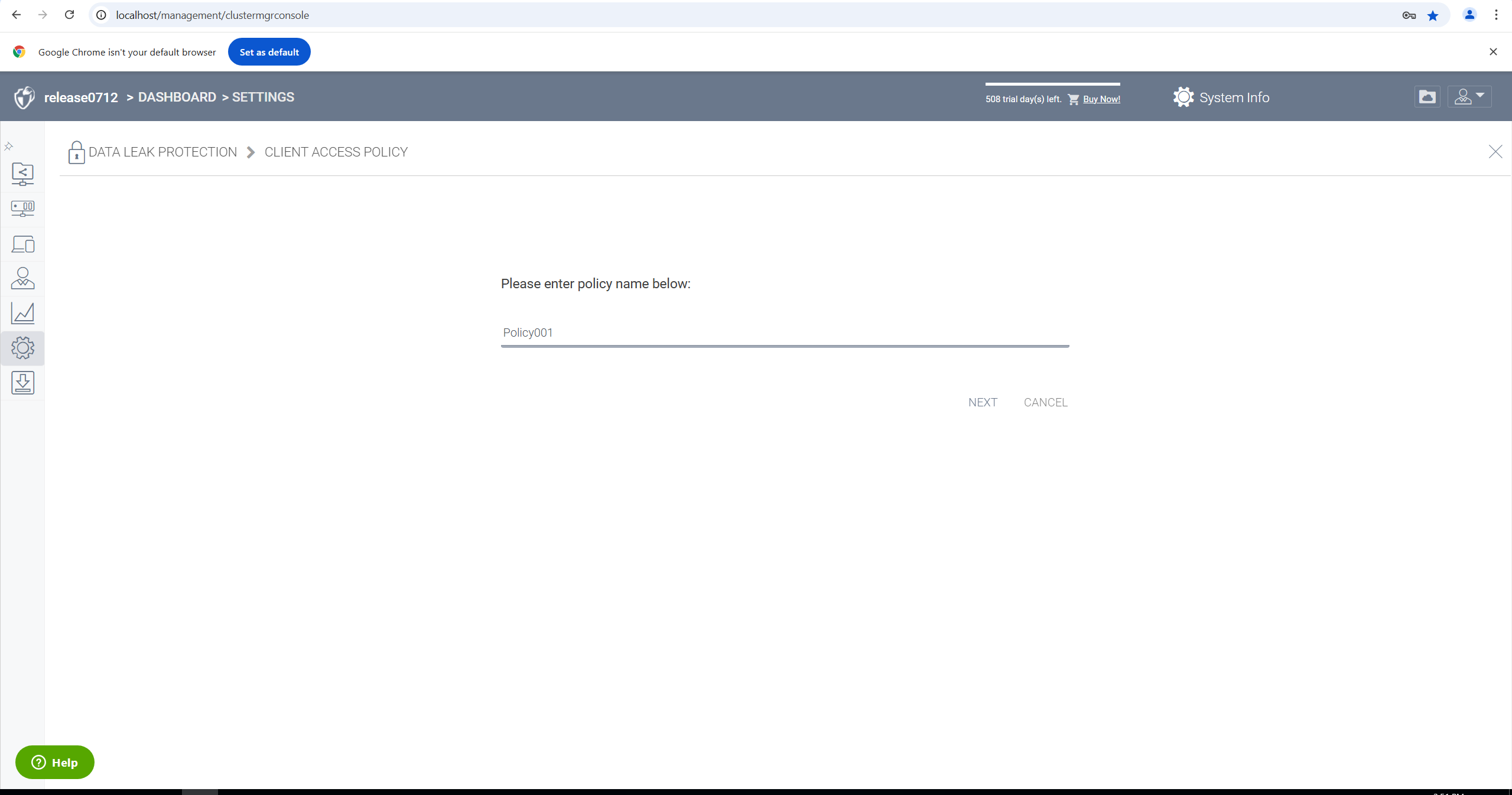

Give the Access Policy a name, then click Next.

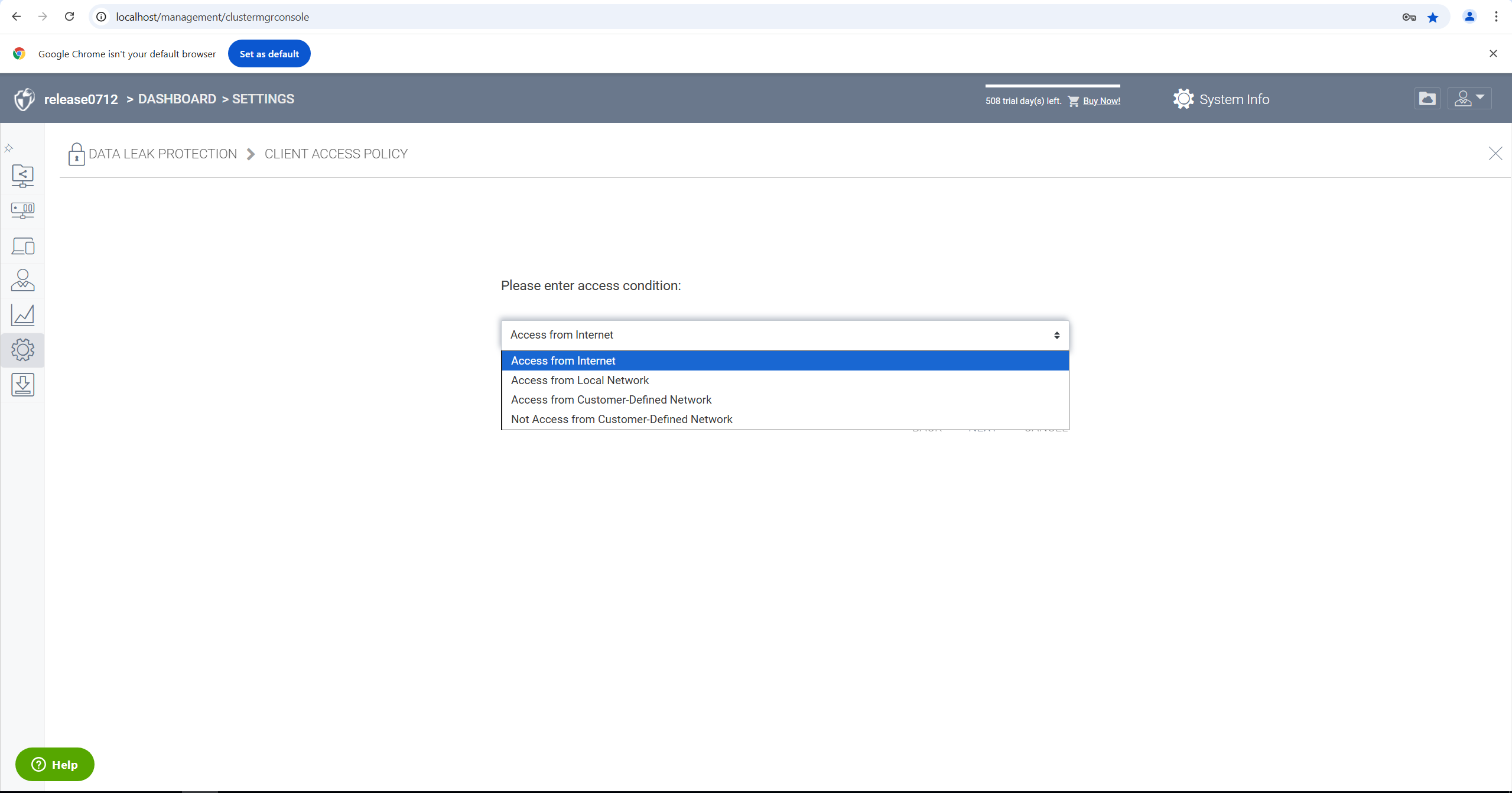

Next you will select an access condition. This is to define where the access is coming from.

There are 4 options

1. Access from Internet - The policy will be active for users logging in from the internet.
2. Access from Local Network - The policy will be active for users logging in from within the same local network as the Centrestack Server.
3. Access from Customer-Defined Network - The policy will be active for users logging in from within the defined IP Range.
4. Not Access from Customer-Defined Network - The policy will be active for users logging in from outside of the defined IP Range.

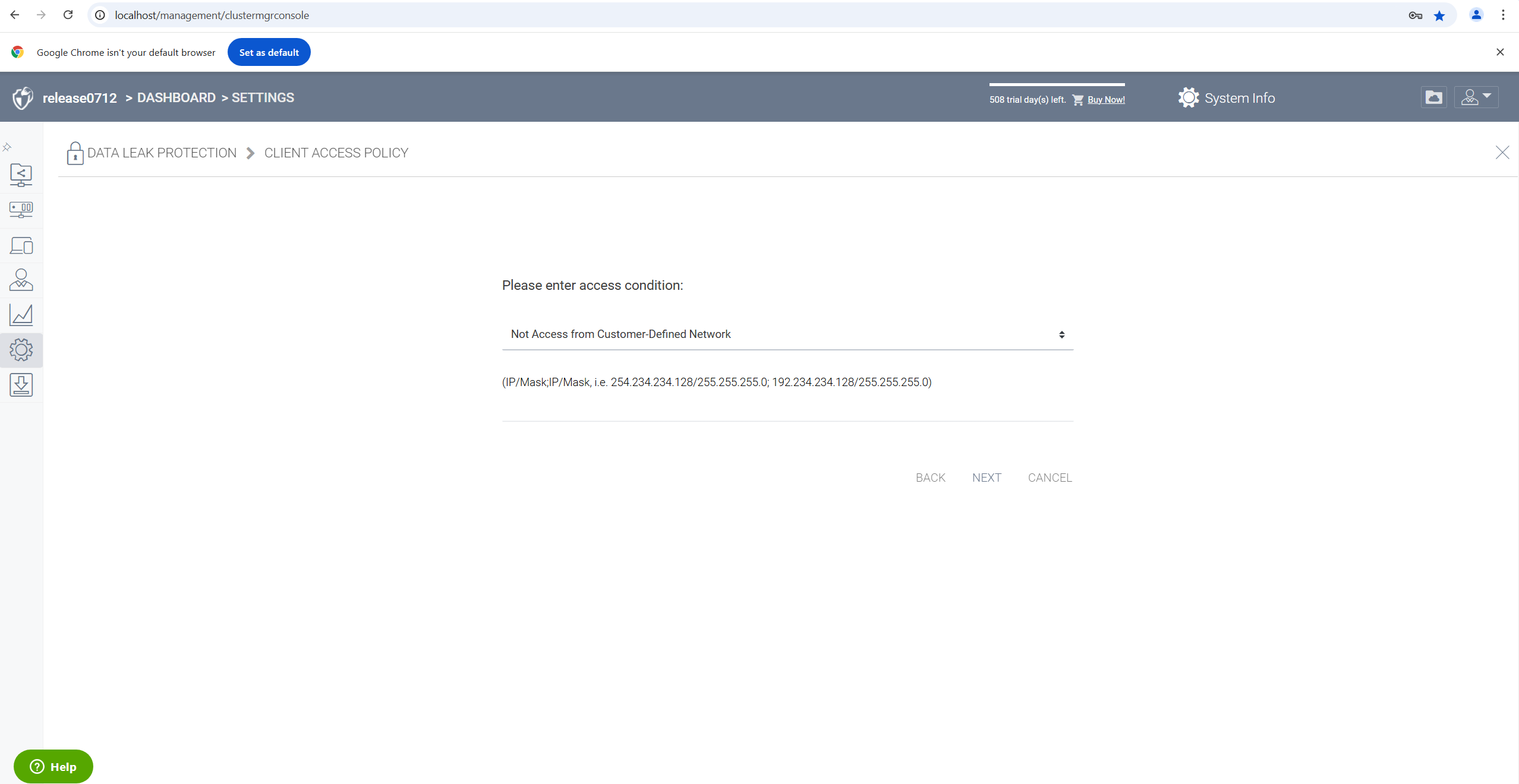

Select an Access Condition, Enter the IP range if requested and click NEXT.

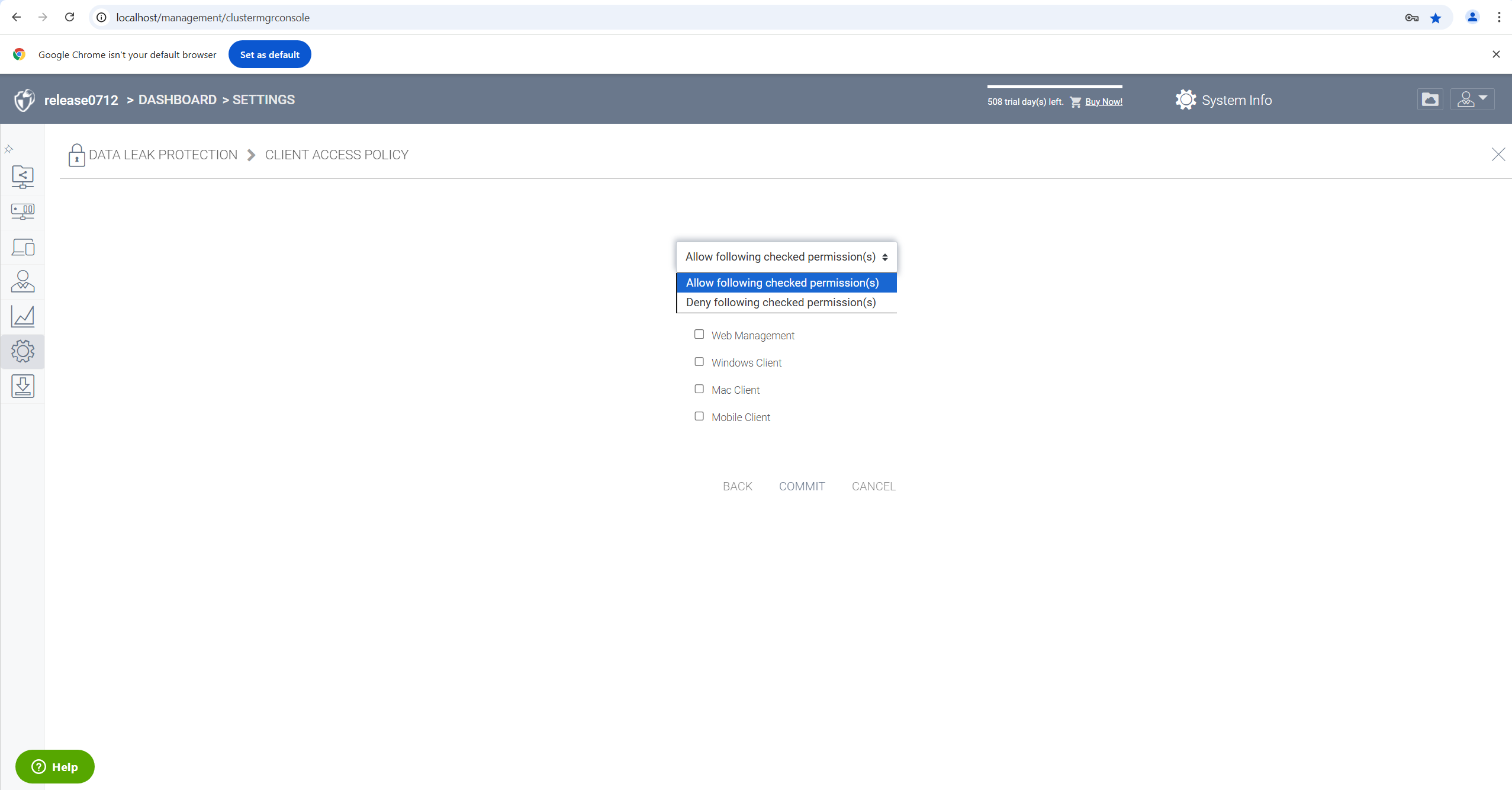

Next, you will set the permission type as well as which applications can be accessed when that permission is set.

Allow Following Checked permission(s) will grant access to the checked modules while

Deny following checked permission(s) will deny access to the checked modules.

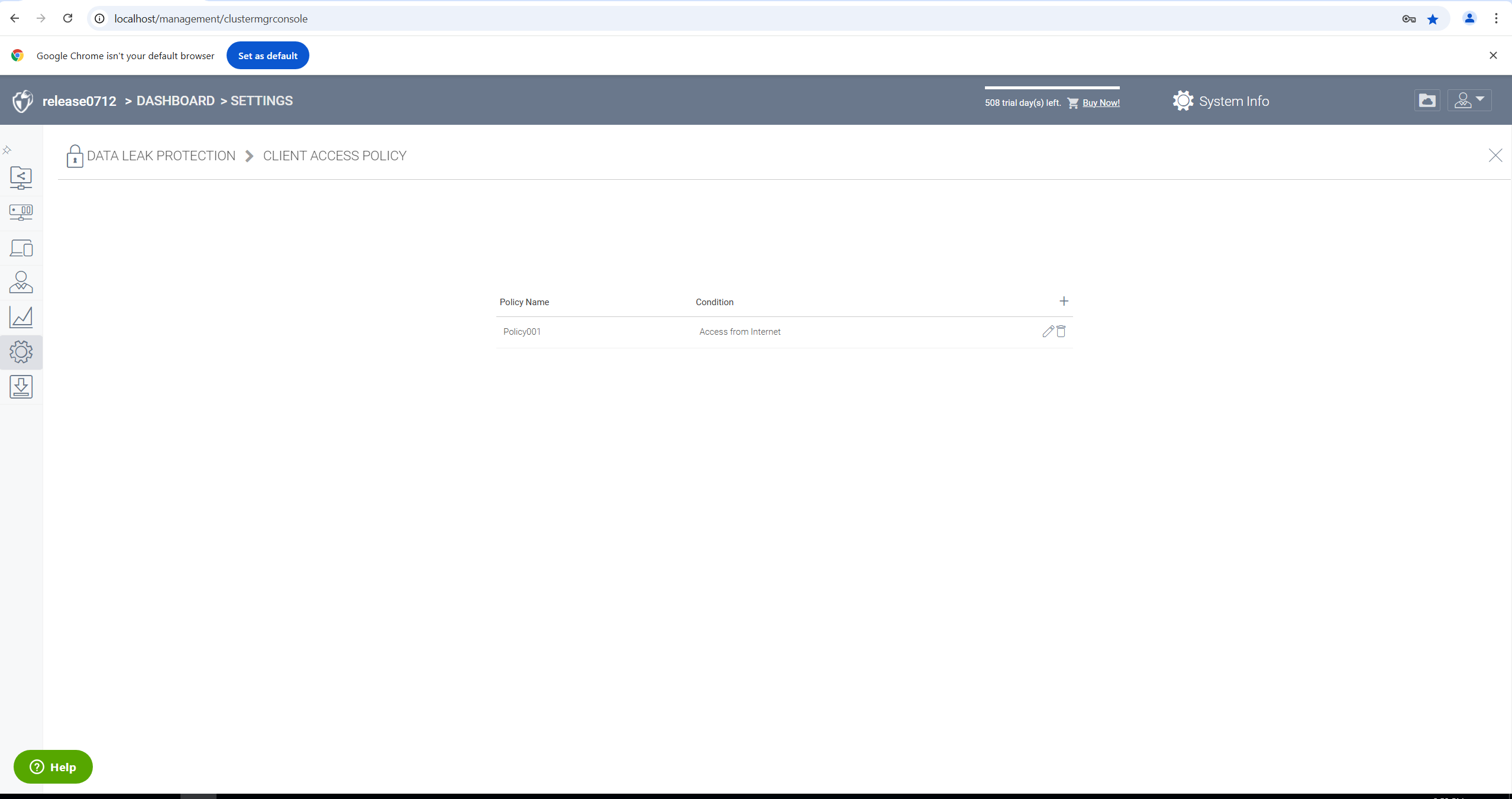

Select the options you want, then click COMMIT. Will see the policy created.
