Collect CentreStack Thread Info

When GCE is slow (for example, slow to browse web portal), we can use WinDbg to catch thread info on the GCE server side.

• Download and install WinDbg (https://developer.microsoft.com/en-us/windows/downloads/windows-sdk/ ); during the installation, select the 'Debugging Tools for Windows' checkbox only.
• Find the corresponding 'SOS.dll' under 'C:\Windows\Microsoft.NET\Framework || Framework64 (based on your OS 32-bit || 64-bit)\ It should be under v4.0.30319 \SOS.dll'.
• Copy 'SOS.dll' to the WinDbg installation folder, together with windbg.exe 'C:\Program Files (x86)\Windows Kits\10\Debuggers\x64 || x86(based on your OS 32-bit || 64-bit)'.

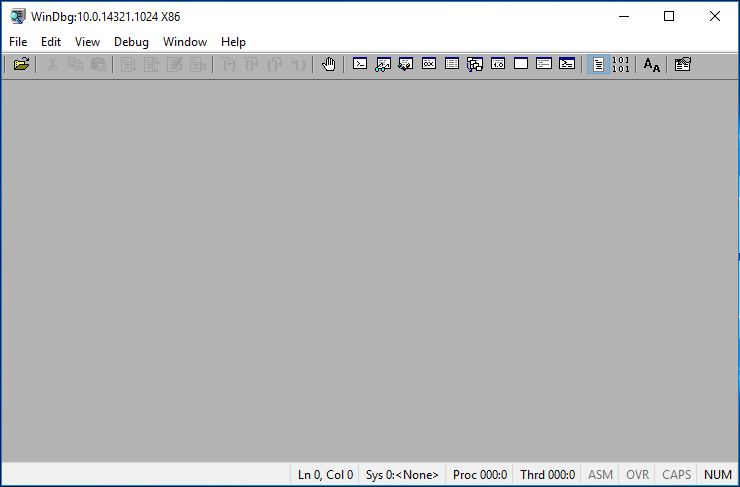

• Start WinDbg as Administrator.

• Contact Support (ticket@gladinet.com) with the Centrestack version, to send you the Symbol files corresponding to the Centrestack installed.
• unzip the Centrestack symbol package. Should see list of folders like pdbsxxxx\namespace\bin
• Create a local folder C:\symbols, to store the symbol files downloaded from Microsoft (symbols from the Client can also be saved on this folder).

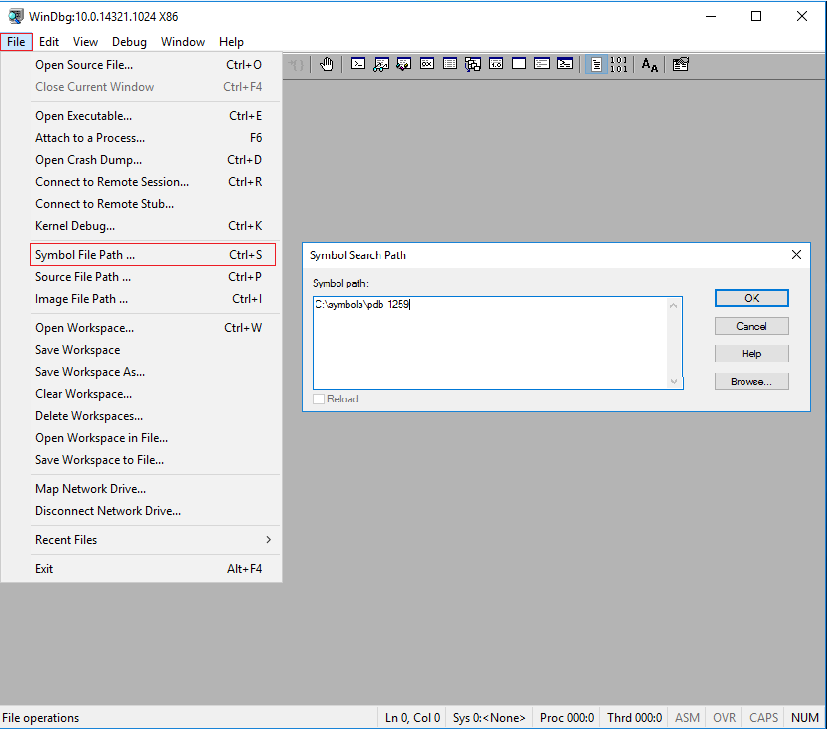

• From th WindDbg go to 'File' -> 'Symbol File Path', set symbol path to 'srv*C:\symbols*https://msdl.microsoft.com/download/symbols;path to unzipped symbol\namespace\bin' (for namespace. If working on other process like UploadDownloadProxy, change it to path to unzipped symbol\UploadDownloadProxy\bin)

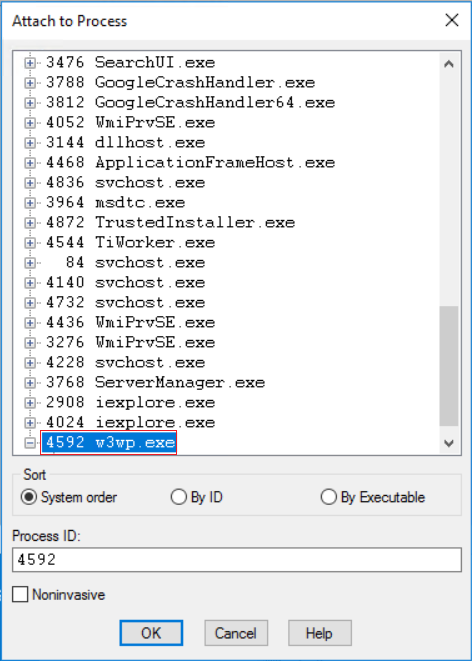

• Press F6 to attach to the process. Find 'w3wp.exe' running as user 'namespace'.

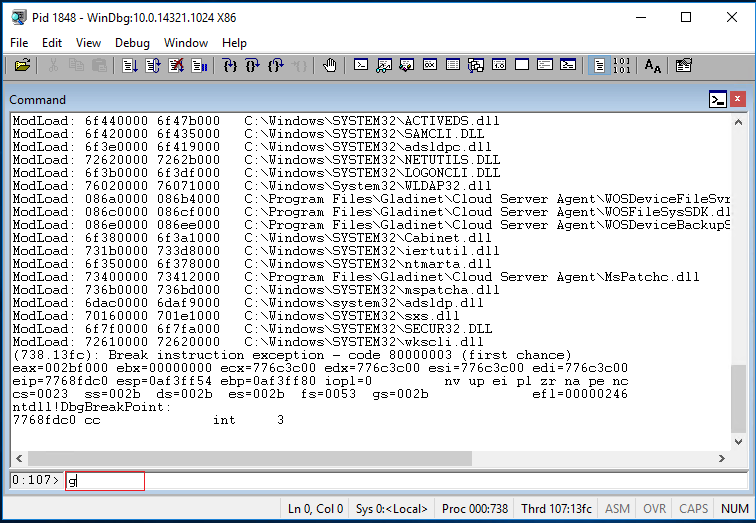

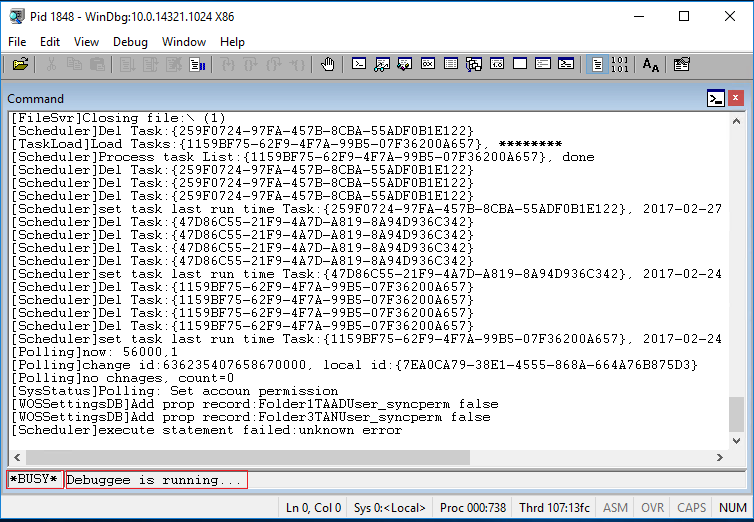

• Type 'g' to continue. The command line field will show '*BUSY* Debuggee is running…'.

• Run the operation which causes GCE to be slow.

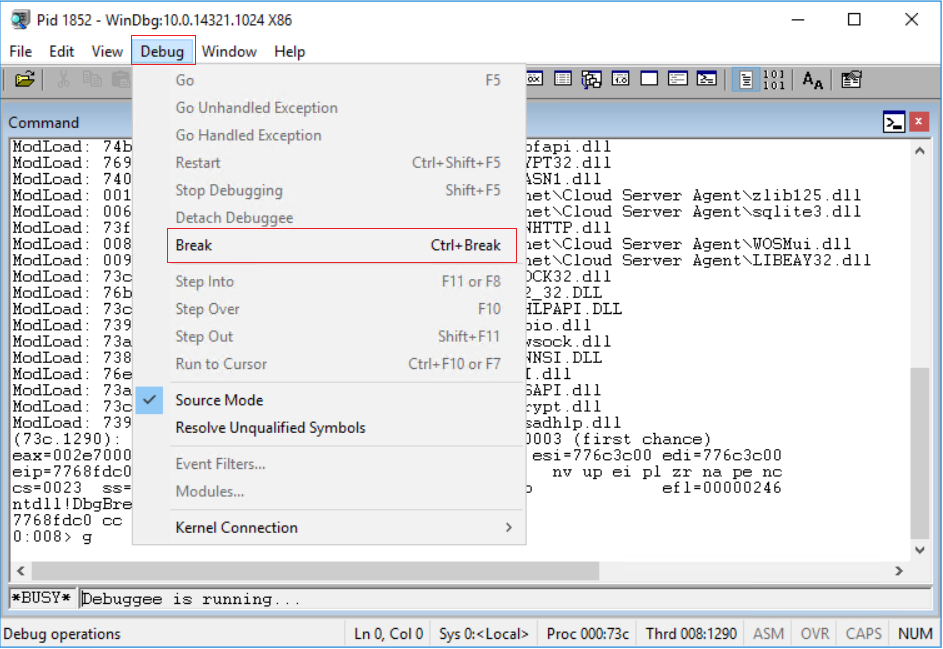

• When the system is slow, go to WinDbg and select 'Debug' -> 'Break', to break in.

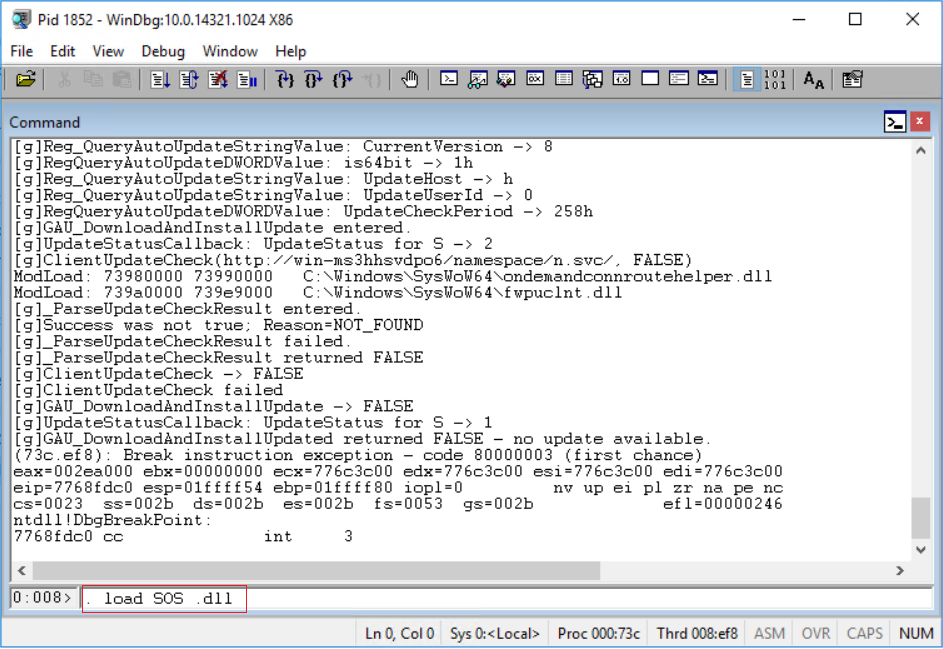

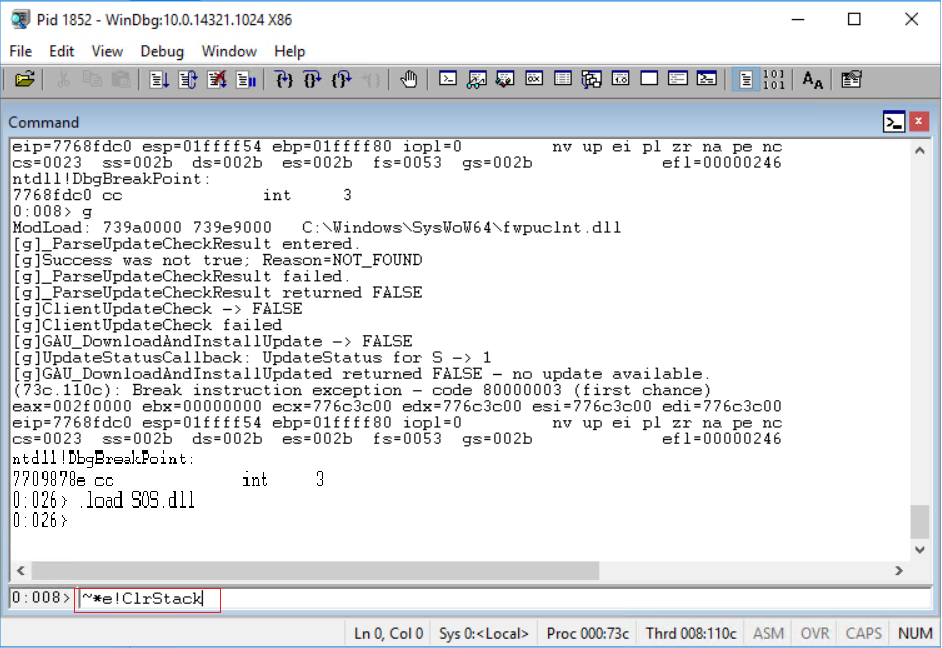

• Type '.load SOS.dll', then '~*e!ClrStack' to collect thread info. Save the output in WinDbg.

• Save the output in WinDbg (Edit -> Write Window Text to File).

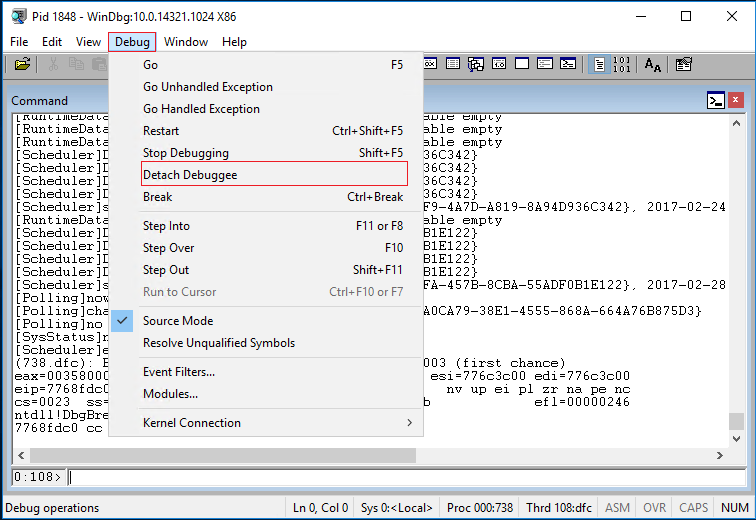

• Click 'Debug' -> 'Detach Debuggee', to detach WinDbg.

• Send the saved output to Gladinet support.
